Transformer 6650 AHA Insulation Paper

Chat Now
Product Details

The The NKN/NHN is suitable for slot, liner, phase, and turn-to -turn insulation in H-class and C-class electrical motors. It can be used as interlayer insulation in high voltage transformer and other electrical appliances.

nhn POLYIMIDE FILM AHA AKA


Combination2-1-22-2-23-1-33-2-35-1-55-2-55-3-5
Normal thicknessmm0.130.170.200.220.300.320.35
Tolerance±%15151515151515
Normal grammageg/m2135±16170±20190±22220±26300±36330±39375±45
Pet film thicknessµm25502550255075
Tensile strength(Noe bend)N/10mmMD≥140160160200270300330
TD≥8090100180150260280
BDV(Not bended)KV≥69797912


Main Features

1) Excellent heat-resistsnt, dielectrical property , superior mechanial properties.

2) In according with GB/T5591.3-2008 and IEC626-3.

3) Adhesive property in 200 ℃ ±2  ℃, 10 min ,No delamination, blister, or adhesive flow

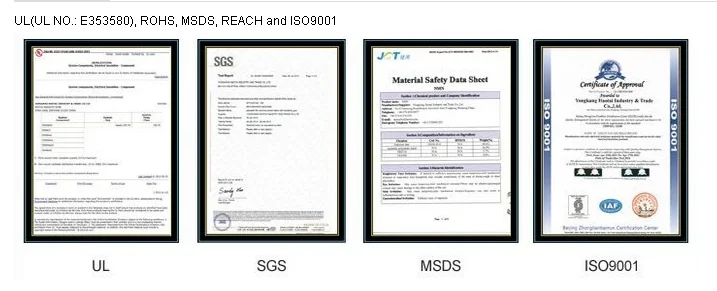

CertificationsAHA AKA high voltage insulation laminates paper hecheng
Packaging
Size1.1M (L) *1.1m (W)
Weight22kg
Packaging Details1.sealed packing with cardboard protection in roll, sea worthy plywood pallet shipping;
2.800kg-1000kg per pallet
3.pallet size 1100x1100x1250mm (for width 1000mm coil)
4.Conveyance: 10 tons/20ft, 20tons/40HQ(no more than 27tons)



Welcome to contact Haotai, which is one of best transformer 6650 aha insulation paper manufacturers and suppliers in China, you can also get transformer 6650 aha insulation paper free sample from our factory.
