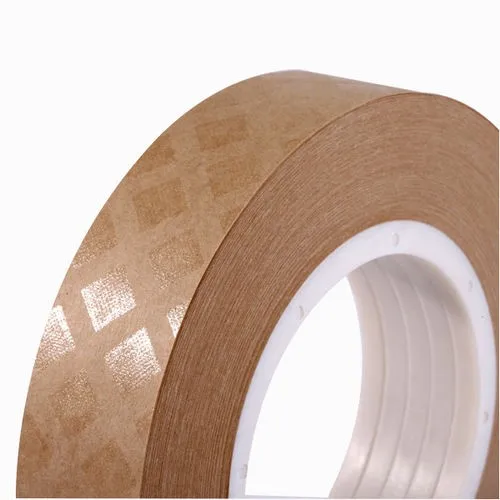

Description: DDP is produced by coating modified epoxy-resin in diamond-dotted patterns on both sides of electrical insulating paper (Kraft paper is derived from Nine Dragons Paper (Holdings) Ltd., the biggest manufacturer of insulating paper who sets the standard of China Kraft Papers).

DDP insulation layer winding paper


DDP is a kind of inertia material, dry and no conglutination at normal temperature (below 30'C). DDP Insulation paper will make the electric conductor felt up as a hard unit under the high temperature by its internal latency substance. Diamond dotted paper is also referred as diamond pattern paper, diamond pattern resin coated paper, epoxy adhesive diamond paper, diamond coated Kraft paper, diamond dotted insulating paper, varnished paper, etc.

diamond dotted ktaft paperDDP for oil transformer
PropertyUnitValue






Thicknessmm0.080.130.150.180.200.250.300.35---0.50
mil35678101415-20
Densityg/cm30.85~1.10






One side coatingum6~12






Moisture content%4.0~8.0






Ash content%≤1.0






Water extraction of Electrical conductitymS/m≤10






PH Water extract
6.5~8.5






Oil absorption%≥20






Bond strengthKpa≥650






Tensile strength N/10mmTD60100110130160200≥250
MD3050557080100≥120

BDVKV0.881.371.502.002.102.25≥2.50

Forms of supply

1) Avaliable width: DDP strip minimum 4mm to master roll 1900mm.

2) Curing condition for Hecheng DDP:  cured for 90℃ ± 5℃ by 3 hours first, then for 125℃ ± 5℃ by 6 hours.

3) Storage and Shelf life: Minimum 12 mouths, to be stored in dry, clean warehouse, avoid direct sunlight and heat.


Certificationsmanufacturer of insulation paper for transformer



Machine Parts

Name: Diamond dotted presspaper

Color:  Red

Original: China

Hecheng DDP can also be supplied in the "thermally upgraded" version, which is called TU DDP.It is achieved by adding a small quantity of nitrogenous additive.

Main Features

Name: Diamond dotted presspaper
Brand: Yellow
Original: China
Electrical grade diamond dotted insulating paper with "B" stage epoxy resin dots.

DDPkraft insulation paper with resin

Machine Parts

Name: Diamond dotted presspaper
Brand: Natural
Original: China
Hecheng's test of insulation paper according to IEC60652-3-2:2008

Our Servicefactory of insulation materials in China

Our Service

a.1 year warranty
b.OEM & ODM are welcome
c.Trial orders are available
d.Sample can be supplied in 7days.
e.Technical supports.
f.Shipping and express will be tracked and reported at any time after sending.

Packing & Deliveryhechin insulation paper manufacturer
Packaging
Size1.1M (L) * 1.1M (W)
Weight2.2 KG
Packaging Details1.sealed packing with cardboard protection in roll, sea worthy plywood pallet shipping;
2.800kg-1000kg per pallet .
3.pallet size 1100x1100x1250mm (for width 1000mm coil)
4.Conveyance: 10 tons/20ft, 20tons/40HQ(no more than 27tons)


Welcome to contact Haotai, which is one of best transformer winding diamond dotted paper ddp manufacturers and suppliers in China, you can also get transformer winding diamond dotted paper ddp free sample from our factory.
